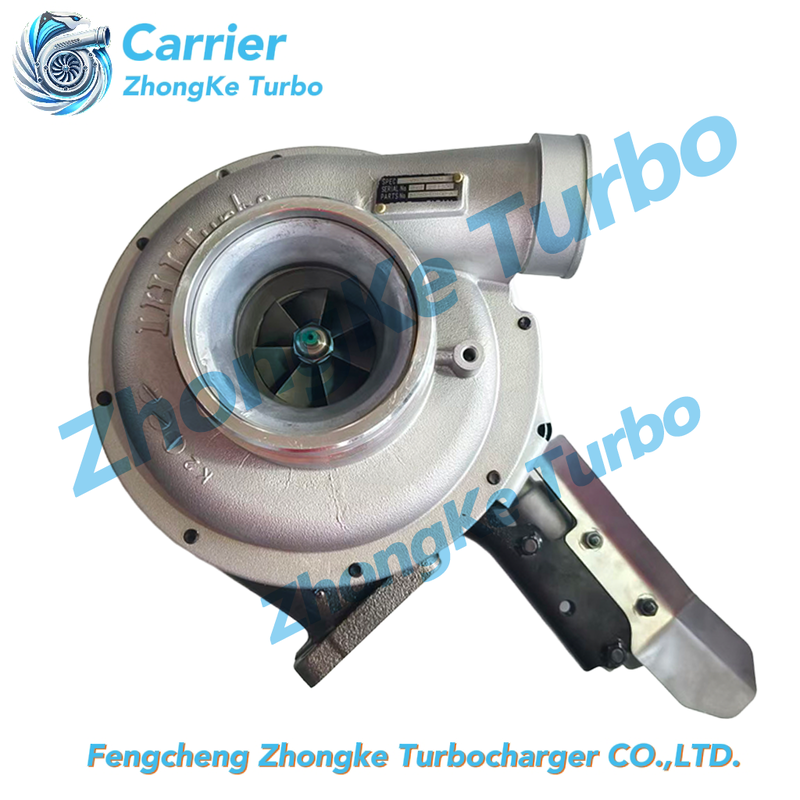

RHG8V Turbo VA520069 114400-4303 Turbocharger for Truck 6WF1 P414 Engine
| Place of Origin | China |
| Brand Name | Carrier |
| Certification | ISO 9001,IATF 16949 |
| Model Number | RHG8V Turbo |
Turbocharger for Truck 6WF1 engine
,Diesel Truck Turbo P414 compatible
,Turbo VA520069 with warranty
RHG8V Turbo VA520069 114400-4303 Turbocharger for Truck 6WF1 P414 Engine
Product Overview
High-Performance RHG8V Turbocharger for 6WF1 Heavy-Duty Trucks
- Designed for the 6WF1/P414 Engine: This RHG8V turbocharger is developed for truck applications using the 6WF1/P414 diesel engine. It helps restore the boost pressure required for steady engine performance, especially during acceleration, climbing and loaded driving.
- Built for Commercial Truck Duty: Highway and vocational trucks often operate for long hours under changing loads. This turbocharger is designed to provide stable airflow during frequent acceleration, extended cruising and heavy-load operation, helping the engine maintain consistent response throughout the working range.
- Direct Replacement Configuration: The mounting points, oil connections and air passages are designed to match the original turbocharger application. This makes it suitable for replacement work without unnecessary changes to the exhaust manifold or intake piping, subject to confirmation against the original unit.
- Reliable Response Under Load: The RHG8V compressor and turbine combination is matched to the airflow needs of the 6WF1 engine. It supports responsive acceleration at low and medium engine speeds while maintaining the airflow needed when the truck is carrying a heavy payload.
- Suitable for Fleet and Workshop Replacement: This turbocharger is suitable for repair shops, fleet maintenance departments and replacement projects involving trucks. Matching the engine code, turbo model and original identification number before installation helps ensure correct fitment.
Technical Specifications & OEM Cross-Reference
| Turbo Model | RHG8V Turbo |
|---|---|
| Part Number | VA520069, VA520022, VB520022, VC520022, VD520022, VF520022 |
| OE Number | 114400-4303, 1144004303, 114400-4301, 1144004301, 114400-4302, 1144004302, 114400-4306, 1144004306, 1-14400-4303, G82VCD-S0022B, G82VCD-S0022G, G82VCDS0022B, G82VCDS0022G |
| Application | For Truck 6WF1 P414 Engine |
| Engine Model | 6WF1 P414 Engine |
| Brand | Carrier |
| Quality | 100% Tested High-Quality ISO 9001 & IATF 16949 certified |
| Type | K18 |
| Material | Alloy |
| Fuel | Diesel Engine |
Compatible OEM & Part Numbers
- Part Numbers: VA520069, VA520022, VB520022, VC520022, VD520022, VF520022
- OEM Numbers: 114400-4303, 1144004303, 114400-4301, 1144004301, 114400-4302, 1144004302, 114400-4306, 1144004306, 1-14400-4303, G82VCD-S0022B, G82VCD-S0022G, G82VCDS0022B, G82VCDS0022G
Application
-
Highway Trucks: Heavy-duty highway truck applications equipped with the 6WF1/P414 diesel engine
-
Truck Applications: Trucks using the 6WF1 or P414 engine configuration
-
Commercial Fleet Vehicles: Long-haul transport trucks, regional delivery trucks and heavy-load fleet vehicles
-
Vocational Truck Applications: Construction support trucks, municipal service vehicles, transport vehicles and other special-purpose trucks using the same engine and turbocharger configuration
-
Typical Working Conditions: Highway driving, loaded transport, stop-and-go fleet operation, long-distance hauling and demanding commercial service
-
Engine Application: 6WF1, P414 and related turbocharged configurations
-
Fitment Note: The same engine may be installed in different truck configurations. Always compare the turbocharger nameplate, mounting orientation and part number before ordering.
Q1: Does this RHG8V turbocharger fit all 6WF1 engines?
Not necessarily. The 6WF1 engine may be used in different truck configurations with variations in housing orientation, oil connections and exhaust mounting. Confirm that the original turbocharger number matches VA520069, VA520022 or one of the listed 114400-series part numbers before ordering.
Q2: Are VA520069 and 114400-4303 interchangeable numbers?
They are commonly listed as reference numbers for the same RHG8V turbocharger application. However, the complete turbocharger should be checked against the original unit, including the compressor outlet direction, turbine housing, oil inlet and oil drain position.
Q3: What are the common signs of a worn 6WF1 turbocharger?
Typical symptoms include reduced engine power, slow acceleration, excessive black smoke under load, increased oil consumption, unusual turbo noise or oil inside the charge-air piping. The air filter, intake system, exhaust system and engine lubrication system should also be inspected before fitting a replacement turbo.
Q4: What should be done before starting the engine after installation?
Replace the engine oil and oil filter, inspect the oil feed and drain lines, clean the intake system and check the intercooler for oil or debris. Fill the turbocharger oil inlet with clean engine oil and rotate the compressor wheel by hand before the first start. After installation, check all oil, air and exhaust connections for leaks.
Q5: Do you provide worldwide shipping?What is the delivery timeframe?
We ship globally via premium carriers like DHL,FedEx,and UPS,as well as sea freight for bulk orders.In-stock items are typically dispatched within 24-48 hours. Express delivery to North America and Europe usually takes 5-7 business days.
About Us
Fengcheng Zhongke Turbocharger Co., Ltd. is a leading high-tech factory specializing in the R&D, production, and global distribution of high-performance turbochargers. Based in Fengcheng—one of the world’s most renowned turbocharger manufacturing hubs—we have grown from a local workshop into a global supplier, serving heavy-duty, commercial, and passenger vehicle markets worldwide.
At Zhongke, we don't just "make" parts.we engineer reliability.
- Material Integrity: We exclusively use K18 Nickel-Alloy turbine wheels, capable of withstanding extreme exhaust temperatures (up to 950°C) without deformation.
- Dynamic Balancing: 100% of our turbochargers undergo high-speed dynamic balancing tests at 150,000+ RPM to guarantee zero vibration and extended bearing life.
- Certified Quality: Our production processes are certified under ISO 9001 and IATF 16949, the gold standards for the global automotive and heavy-machinery industries.
Manufacturing Prowess:Our facility is equipped with state-of-the-art production lines, including precision 5-Axis CNC machining centers, high-speed VSR (Vibration Sorting Rig) balancing machines, and advanced material testing labs.
Our Specialization:We maintain a vast inventory of over 3,500+ turbocharger models, with a focus on heavy-duty and construction machinery engines. Focused on optimizing fuel efficiency and restoring factory horsepower, our passenger car turbos are engineered with the same precision and K18 heat-resistant materials as our industrial line, ensuring reliable performance for daily commuting and high-speed driving alike.
Global Partnership & Support: Zhongke Turbo is more than just a manufacturer; we are your long-term technical partner. With nearly 30 years of export experience, we understand the logistics and technical requirements of the international market. We provide a warranty and dedicated technical support to help our partners succeed.
- Key Export Regions: North America, Europe, the Middle East, Africa, Latin America, and Southeast Asia.
Experience the difference of nearly 30 years of factory expertise. Contact us today for wholesale inquiries or technical consultations.
