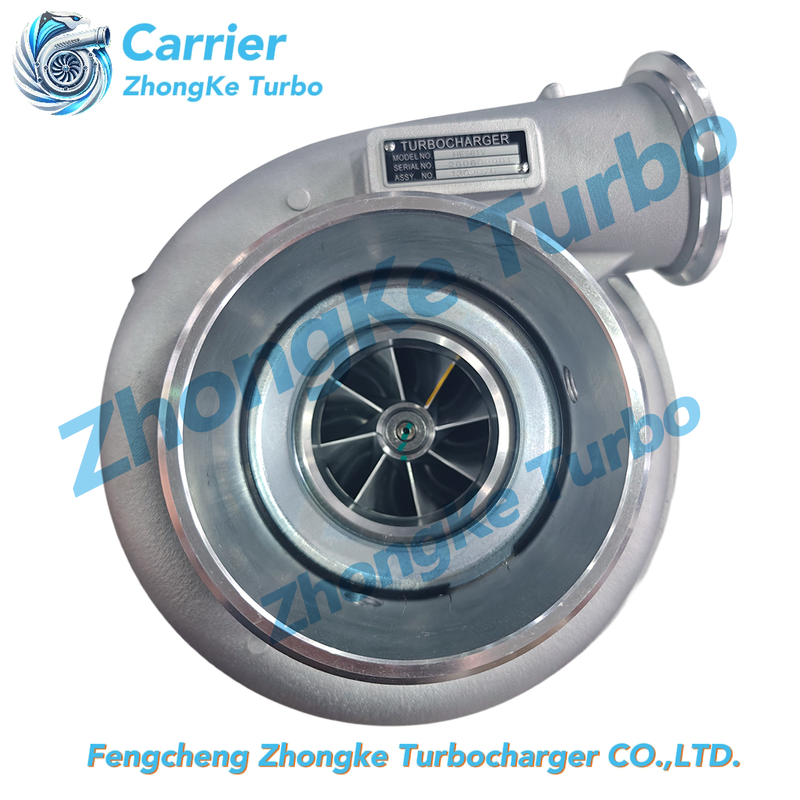

HE561VE VGT Turbo 5350611 4955425 Turbocharger for Truck ISX15 QSX15 Engine
| Place of Origin | China |
| Brand Name | Carrier |
| Certification | ISO 9001,IATF 16949 |
| Model Number | HE561VE Turbo |
VGT Turbo for ISX15 QSX15 Engine
,HE561VE Turbocharger for Diesel Truck
,Turbocharger with warranty for ISX15
HE561VE VGT Turbo 5350611 4955425 Turbocharger for Truck ISX15 QSX15 Engine
Product Overview
Premium HE561VE VGT Turbocharger for ISX15 & QSX15 Engines
- Ultimate VGT Performance: Features a precision-engineered Variable Geometry System (VGT) specifically calibrated for the ISX15 15-liter platform. Technical Benefit: Restores peak engine braking performance (Jake Brake), maximizes low-end torque for heavy hauls, and ensures smooth actuator communication with the ECM.
- Direct "Drop-In" Replacement: A 1:1 mechanical and electronic match for original Holset HE561VE units. Designed for a perfect fit on Freightliner, Kenworth, and Peterbilt Class 8 trucks—ensuring a seamless, professional installation.
- K18 Nickel-Alloy Turbine Wheel: Equipped with an oversized K18 Nickel-Alloy turbine wheel, designed to withstand the extreme exhaust temperatures and sustained boost pressures of 600HP+ engines without blade creep or fatigue.
- VSR High-Speed Balancing: 100% dynamic balancing tested on a Vibration Sorting Rig (VSR) at full operational RPMs. This ensures whisper-quiet operation and maximizes bearing life during million-mile long-haul service cycles.
- Fleet-Grade Durability: Manufactured to meet IATF 16949 standards by Zhongke Turbo, providing a high-reliability, cost-effective alternative to expensive OEM dealership units while maintaining original equipment uptime.
Technical Specifications & OEM Cross-Reference
| Turbo Model | HE561VE Turbo |
|---|---|
| Part Number | 5350611, 2836357, 2838153, 2838154, 2840519, 2840520, 2840521, 3767615, 3767622, 3767630, 3774601, 3774612, 3774626, 3774640, 3780526, 3792776, 3792786, 3795162, 4042413, 4045031, 4045034, 4309076, 4955425, 4956010, 5350641, 5350893, 5359785, 5456738, 5457297 |
| OE Number | 2881785NX, 2881785RX, 2881997NX, 2881997RX, 4309076NX, 4309076RX, 4955425RX, 5350893HX, 5457297RX |
| Application | For Truck ISX15 QSX15 Engine |
| Engine Model | ISX15 QSX15 Engine |
| Brand | Carrier |
| Quality | 100% Tested High-Quality ISO 9001 & IATF 16949 certified |
| Type | K18 |
| Material | Alloy |
| Fuel | Diesel Engine |
Compatible OEM & Part Numbers
- Part Numbers: 5350611, 2836357, 2838153, 2838154, 2840519, 2840520, 2840521, 3767615, 3767622, 3767630, 3774601, 3774612, 3774626, 3774640, 3780526, 3792776, 3792786, 3795162, 4042413, 4045031, 4045034, 4309076, 4955425, 4956010, 5350641, 5350893, 5359785, 5456738, 5457297
- OEM Numbers: 2881785NX, 2881785RX, 2881997NX, 2881997RX, 4309076NX, 4309076RX, 4955425RX, 5350893HX, 5457297RX
Application
- Freightliner: Cascadia, Coronado models with ISX15 engine.
- Kenworth: T660, T680, T800, W900 long-haul tractors.
- Peterbilt: 386, 388, 389, 579, 587 vocational and highway trucks.
- Trucks: North American models utilizing the ISX platform.
- International: ProStar, LoneStar with ISX15 Power.
- Engine Series: ISX15, QSX15, ISX Gen 2 Turbocharged Diesel with VGT.
Q1: How do I verify fitment for my ISX15 engine?
Please check the nameplate on your old turbocharger for the part number 5350611 or the number 4955425. ISX15 engines have multiple VGT generations; matching the specific 7-digit or 8-digit number is the only way to ensure 100% compatibility with your actuator and engine harness.
Q2: Does the turbo include the electronic VGT actuator?
Our HE561VE is typically supplied as a complete assembly including the pre-calibrated electronic VGT actuator. This allows for a "plug-and-play" installation, though we recommend a final "actuator calibration" using INSITE to ensure perfect synchronization with the ECM.
Q3: What causes VGT failure on the ISX15?
The most common causes are carbon/soot buildup in the nozzle ring vanes and coolant leaks into the VGT housing. We strongly recommend regular DPF/EGR maintenance and replacing the Oil Feed Line during installation to prevent premature vane sticking.
Q4: Is this an "Outright Purchase" or a Reman unit?
This is a 100% Brand-New Outright Purchase. No core charge is required, and there is no need to ship your old core back to us, saving you thousands in international shipping and core fees.
Q5: Do you provide worldwide shipping?What is the delivery timeframe?
We ship globally via premium carriers like DHL,FedEx,and UPS,as well as sea freight for bulk orders.In-stock items are typically dispatched within 24-48 hours. Express delivery to North America and Europe usually takes 5-7 business days.
About Us
Fengcheng Zhongke Turbocharger Co., Ltd. is a leading high-tech factory specializing in the R&D, production, and global distribution of high-performance turbochargers. Based in Fengcheng—one of the world’s most renowned turbocharger manufacturing hubs—we have grown from a local workshop into a global supplier, serving heavy-duty, commercial, and passenger vehicle markets worldwide.
At Zhongke, we don't just "make" parts.we engineer reliability.
- Material Integrity: We exclusively use K18 Nickel-Alloy turbine wheels, capable of withstanding extreme exhaust temperatures (up to 950°C) without deformation.
- Dynamic Balancing: 100% of our turbochargers undergo high-speed dynamic balancing tests at 150,000+ RPM to guarantee zero vibration and extended bearing life.
- Certified Quality: Our production processes are certified under ISO 9001 and IATF 16949, the gold standards for the global automotive and heavy-machinery industries.
Manufacturing Prowess:Our facility is equipped with state-of-the-art production lines, including precision 5-Axis CNC machining centers, high-speed VSR (Vibration Sorting Rig) balancing machines, and advanced material testing labs.
Our Specialization:We maintain a vast inventory of over 3,500+ turbocharger models, with a focus on heavy-duty and construction machinery engines. Focused on optimizing fuel efficiency and restoring factory horsepower, our passenger car turbos are engineered with the same precision and K18 heat-resistant materials as our industrial line, ensuring reliable performance for daily commuting and high-speed driving alike.
Global Partnership & Support: Zhongke Turbo is more than just a manufacturer; we are your long-term technical partner. With nearly 30 years of export experience, we understand the logistics and technical requirements of the international market. We provide a warranty and dedicated technical support to help our partners succeed.
- Key Export Regions: North America, Europe, the Middle East, Africa, Latin America, and Southeast Asia.
Experience the difference of nearly 30 years of factory expertise. Contact us today for wholesale inquiries or technical consultations.
